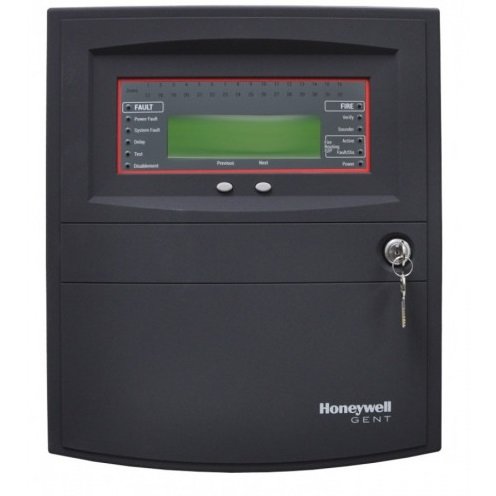

Gent VIGPLUS-24 Addressable Vigilon Plus 1–4 Loop Fire Control Panel (supplied with 1 Loop Card)

The Vigilon Plus range from Honeywell Gent delivers advanced fire detection and alarm management in a highly reliable, networkable, and scalable system. Designed for medium to large installations, the Vigilon Plus series combines powerful sensing technology with intuitive system management.

The VIGPLUS-24 panel supports up to 4 loops, each accommodating up to 200 devices, including sensors, interfaces, call points, sounders, and EN54-23 compliant visual alarms.

Key Features

• Flexible Loop Capacity
  • 1–4 loops (supplied with 1 loop card, expandable)
  • Up to 200 devices per loop
• Reliable Detection & Response
  • Compatible with Honeywell Gent S-Quad multi-sensors (combined smoke, heat, CO, speech, sounder & VAD in one unit).
  • Advanced sensing algorithms for fast, accurate fire identification.
• User-Friendly Operation
  • Back-lit LCD display (8 lines × 40 characters).
  • Simple push-button keypad for emergency operation.
  • Extended event log storage via flash memory.
• System Design & Programming
  • PC-based commissioning tools for tailored fire plans.
  • Support for evacuation zones, alert status, pre-set delays.
  • Flexible programming directly at the panel.
• Networking Options
  • Network up to 200 panels in a multi-domain system.
  • Copper or fibre optic networking options.
  • Panels operate seamlessly as a single system.
• Installation Benefits
  • All devices connect on the same two-core loop (no need for separate sounder/repeater wiring).
  • Repeat Panels available with their own 72-hour standby power.
• Power & Standby
  • Integrated 24-hour standby (on 2- & 4-loop versions).
  • 6-loop version supports 72-hour standby.
  • Requires 2 × 12V 24Ah Batteries (NP24-12)

The Gent VIGPLUS-24 Vigilon Plus control panel offers powerful fire detection and alarm management, scalable networking, and intuitive operation. Ideal for complex installations where compliance, reliability, and flexibility are critical.
