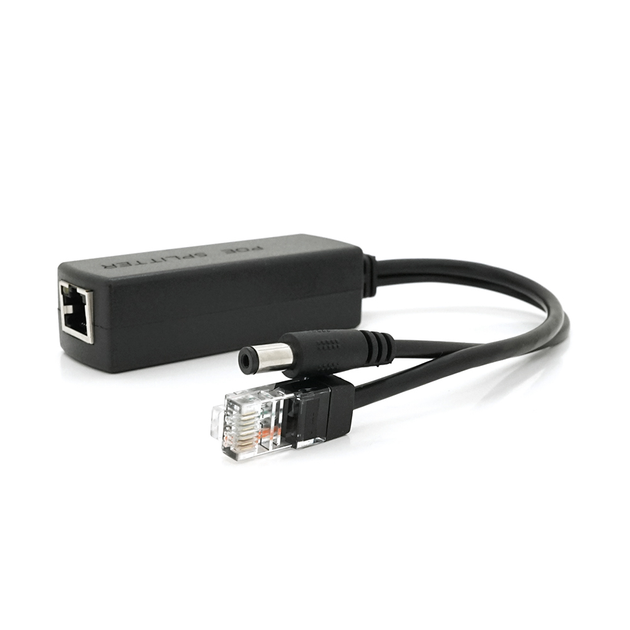

ONV-PD5201 10/100M PoE Splitter Cable

The ONV-PD5201 is a compact and reliable 10/100M PoE splitter cable independently developed by ONV, designed to power non-PoE devices by splitting data and power from a PoE-enabled network connection. It features 1 × 10/100M RJ45 input port, 1 × DC5521 power output port, and 1 × 8P male output port, making it ideal for connecting legacy or non-PoE terminals such as access points, IP cameras, or network devices that require DC input.

Compliant with the IEEE802.3af/at standard, the ONV-PD5201 supports both End-span (1,2+; 3,6–) and Mid-span (4,5+; 7,8–) power supply methods. With an output power of 15W, efficiency above 82%, and built-in short-circuit, over-current, and over-temperature protection, it ensures stable and safe operation. Its ABS + PC flame-retardant housing provides durability, while the plug-and-play design makes deployment quick and effortless.

This splitter is perfect for security monitoring, wireless networking, and industrial applications, reducing cabling costs, improving system stability, and supporting flexible installations without power line constraints.

Key Features:

• 10/100M PoE Splitter Cable – RJ45 input, DC5521 output, and 8P male output.
• IEEE802.3af/at Compliant – Supports End-span and Mid-span power delivery.
• Output Power 15W, 12VDC (default) – Customizable from 5V to 24V.
• Built-in Protections – Short-circuit, over-current, and over-temperature safety.
• Durable Flame-Retardant Housing – ABS + PC plastic casing for safe operation.
• Plug & Play Design – Simple installation, no configuration required.

Specifications:

• Model: ONV-PD5201
• Ports: 1 × 10/100M RJ45, 1 × DC5521, 1 × 8P male output
• PoE Standard: IEEE802.3af/at (End-span & Mid-span)
• Input Voltage: 44–57V DC
• Output Voltage: 12VDC (default), 5–24V customizable
• Output Power: 15W max (12W rated)
• Efficiency: >82%
• Housing: ABS + PC flame-retardant plastic
• Protections: Short-circuit, over-current, over-temperature

Typical Applications:

• Powering non-PoE IP cameras
• Wireless access points (legacy devices)
• VoIP phones & intercom systems
• Access control equipment
• Industrial networking terminals
• Small-to-medium security and networking projects

The ONV-PD5201 PoE Splitter Cable offers a safe, efficient, and flexible way to power non-PoE devices via PoE networks, cutting wiring costs while ensuring reliable performance in security and enterprise environments.
