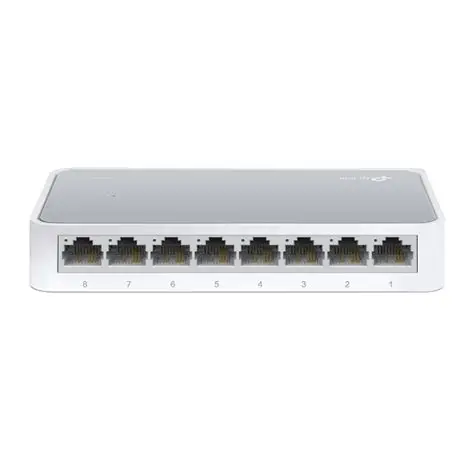

Expand your wired network with reliable, cost-effective performance using the TP-Link TL-SF1008D—eight 10/100 Mbps RJ45 ports ensure fast data access across multiple devices. Designed for small offices, home studios, or SOHO environments, this unmanaged switch delivers plug-and-play simplicity with no configuration needed. On each port, Auto-Negotiation and Auto-MDI/MDIX take care of compatibility, eliminating crossover cable worries.
Built using non-blocking architecture, the TL-SF1008D forwards and filters network traffic at full wire-speed for maximum throughput. Large file transfers benefit from its support for 2K jumbo frames, and congestion is minimized via IEEE 802.3x flow control (full duplex) and backpressure (half duplex).
Efficiency is a priority—this switch includes TP-Link’s Green Ethernet technology, reducing power consumption by up to ~60% depending on link status and cable lengths. The fan-less design, LED indicators, and compact desktop form factor let you mount this unit seamlessly in any workspace.
Specifications
| Spec | Detail |
| Ports | 8 × 10/100 Mbps RJ45, Auto-Negotiation, Auto-MDI/MDIX |
| Data Rates | Half-duplex: 10/100 Mbps; Full-duplex: 20/200 Mbps per port |
| Switching Capacity (Backplane) | ~1.6 Gbps non-blocking architecture |
| Buffer Size | 768 Kb internal buffer to help with bursts and congestion |
| Power Supply | External adapter; input 100-240 V AC, output 5.0 V DC / 0.6 A |
| Power Consumption | Maximum ~2 W under 220V/50Hz mains |
| Dimensions | Approx. 5.3 × 3.1 × 0.9 in / 134.5 × 79 × 22.5 mm |
| Operating Conditions | Temp: 0-40 °C; Humidity: 10-90% non-condensing |
| Certifications | FCC, CE, RoHS |
