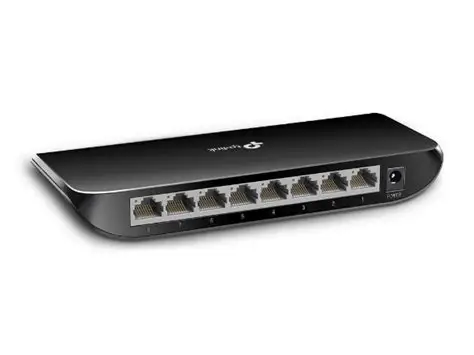

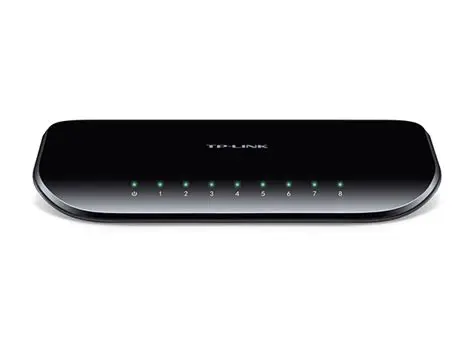

The TP-Link TL-SG1008D is an unmanaged desktop Gigabit Ethernet switch designed to provide fast, reliable network expansion for homes, small offices, and creative workspaces. With eight 10/100/1000 Mbps RJ45 ports, Auto-MDI/MDIX support, and plug-and-play setup, it allows you to connect multiple devices (PCs, NAS units, printers, etc.) with minimal fuss and maximum speed.
One of its standout features is Green Ethernet technology, which reduces electricity use by automatically adjusting power based on cable length and shutting down idle ports. This helps lower the running cost and makes the switch an eco-friendlier choice.
Built with a fanless plastic housing suitable for desktop or wall-mount installation, the TL-SG1008D operates quietly and stays cool. It supports jumbo frames up to 15 KB to improve performance when transferring large files. The switch delivers a switching capacity of 16 Gbps, and has very low power draw — around 4.6 W under full load.
Key Specifications
| Specification | Detail |
| Ports | 8 × RJ45 Gigabit: 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX |
| Switching Capacity | 16 Gbps non-blocking architecture |
| Forwarding Rates | ~14880 pps at 10 Mbps, ~148,800 pps at 100 Mbps, ~1,488,000 pps at 1000 Mbps per port |
| Jumbo Frame Support | Up to 15 KB |
| Power Consumption | Max ~4.6 W under 220 V / 50 Hz; very low typical usage with green features |
| Physical Dimensions | Approx. 180 × 90 × 25.5 mm (7.1 × 3.5 × 1.0 in) |
| Certifications | FCC, CE, RoHS |
| Operating Environment | 0-40 °C operating temperature; humidity 10-90% non-condensing |
